Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness

Product Categories
Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness

Type : TFT

Display Size : 5.0inch

Supplier Type : Original Brand

Place of Origin : China

Brand Name : Tianma

Panel Type : a-Si TFT-LCD, LCM

Resolution : 800(RGB)x480, WVGA 188PPI

Module Outsize(mm) : 120.7(W)x77.8(H)x5.9(D)

Viewing Angle : 70/70/50/70 (Typ.)(CR≥10)

Brightness : 1000cd/m2

Interface : Parallel RGB (1 ch, 8-bit) , 40 pins FPC

Touch Screen : without

Application : Industrial

MPQ : 72pcs

Warranty : 12 Months

Price : $35/pieces 1-99 pieces

Contact Now

Products Description
Panel Model
TM050RDZG03-30
Panel Brand
Tianma
Size (inch )
5.0inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
800(RGB)×480, WVGA 188PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
120.7 × 77.8 × 5.9 (H×V×D)
Display Mode
TN, Normally White, Transmissive
LCD Active area(mm)
108(W)×64.8(H) mm
Response Time
20/30 (Typ./Max.)(Tr+Td) ms
Display Colors
16.7M 50% NTSC
Light Source
3S6P WLED , 50K hours
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
1000 cd/m² (Typ.)
Power Supply
3.3V (Typ.)
Contrast Ratio
600:1 (Typ.) (TM)
Used for
Industrial
Frame Ratio
60Hz
Enviroment
Storage Temp.: -40 ~ 90 °C
Operating Temp.: -30 ~ 85 °C
LCM Interface Type
Parallel RGB (1 ch, 8-bit) , 40 pins FPC
FPC connector
Pitch 0.5mm
Details Images

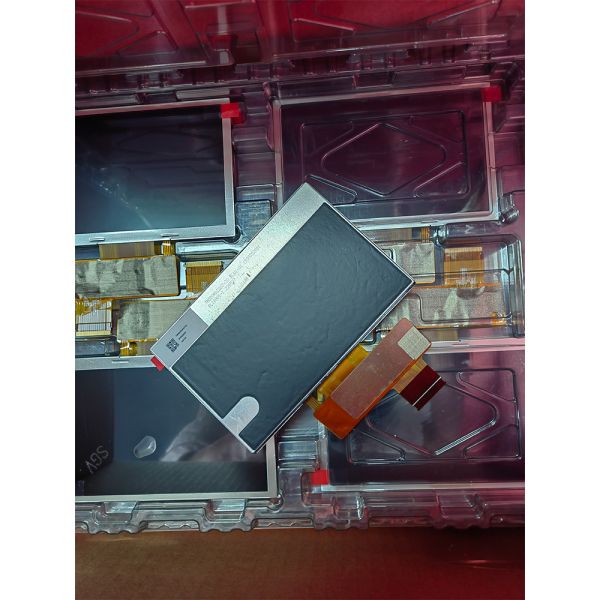

Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness

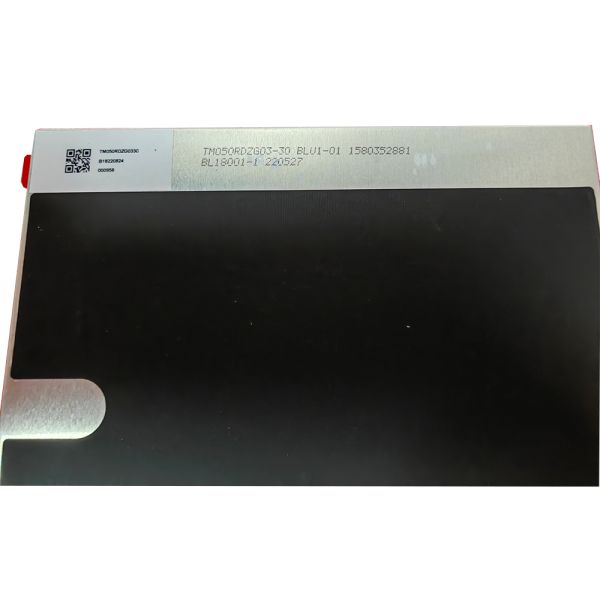

Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness

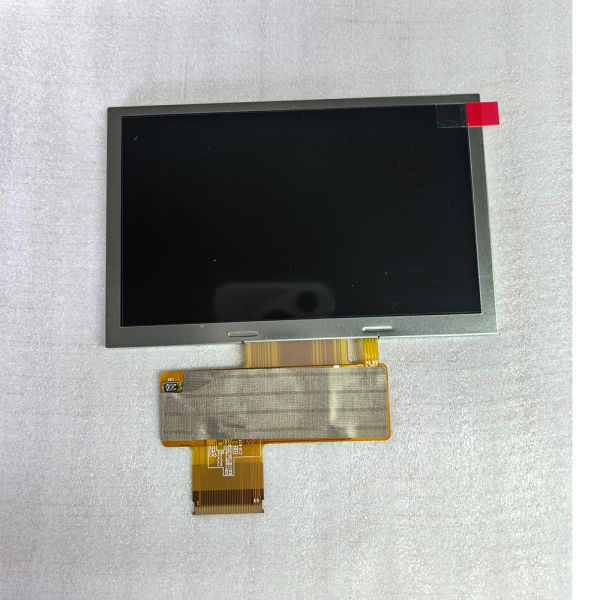

Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Company Profile
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
Original Tianma 5.0-Inch WVGA 800x480 IPS TFT-LCD Industrial Display Module TN Type Wide Temperature High Brightness
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
